Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO data and transferring the Maintenance Minder information from the gauge control module with the HDS Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal / Installation.

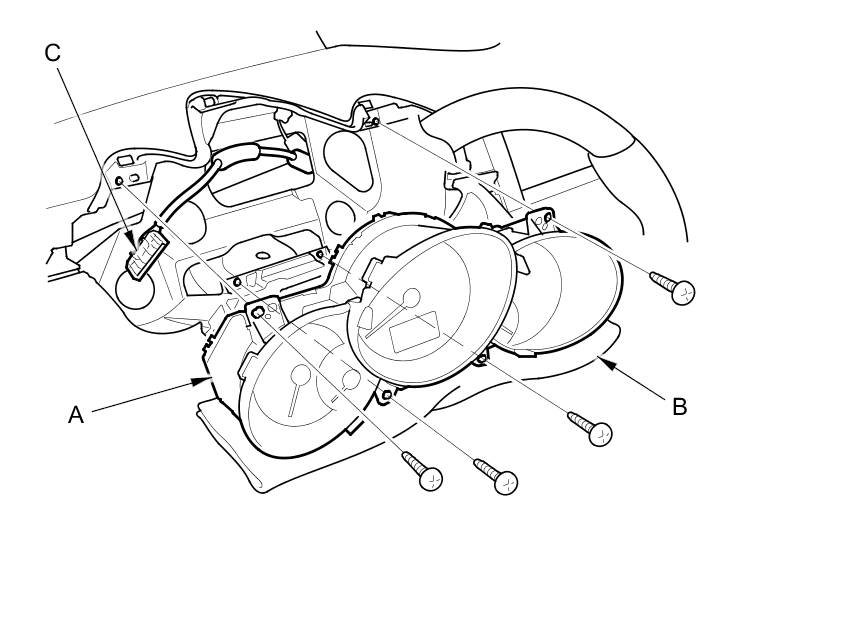

2. Remove the four screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.





3. Disconnect the 36P connector (C), and remove the gauge control module.

4. Install the gauge in the reverse order of removal.

NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with HDS.
