ACC Cut Relay And IG2 Cut Relay Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

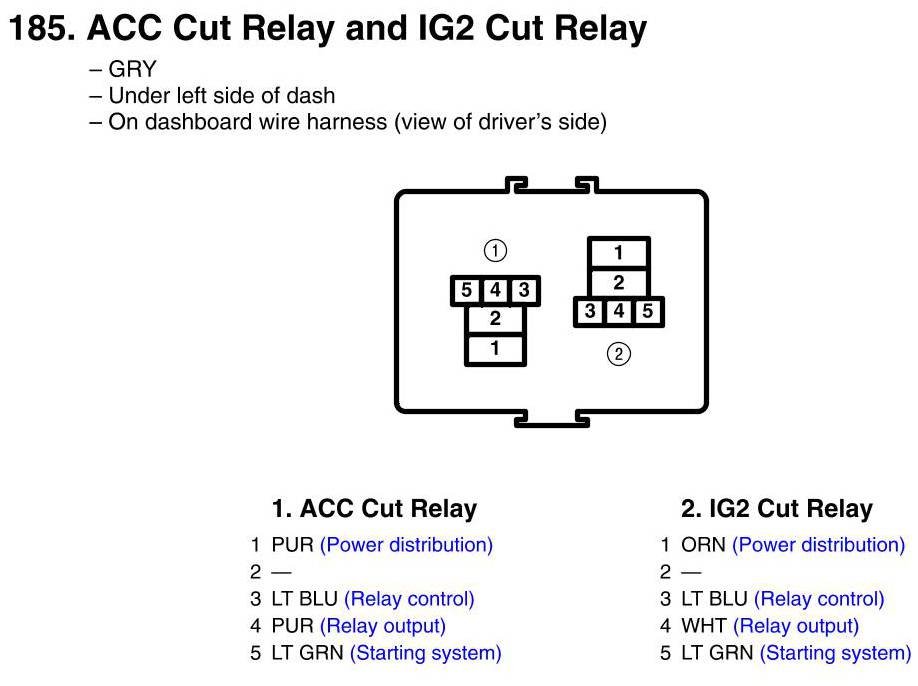

ACC Cut Relay And IG2 Cut Relay Connector View
