Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the passenger's vent panel Passenger's Vent Panel Removal/Installation.

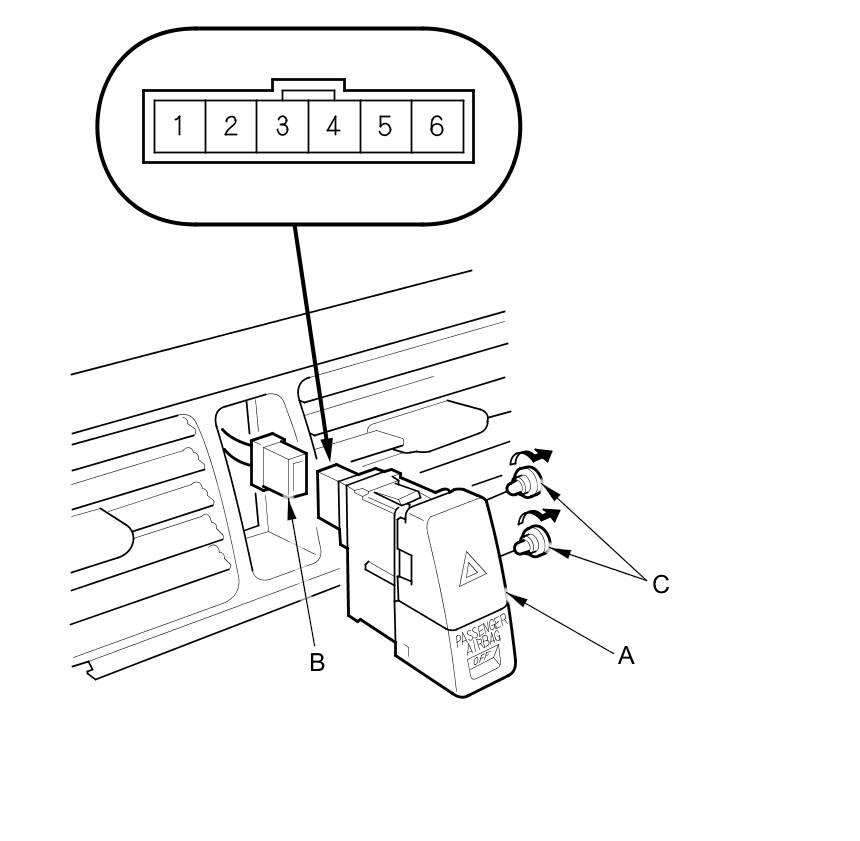

2. Push out the hazard warning switch (A) from behind the vent panel.





3. Disconnect the 6P connector (B) from the hazard warning switch and pull out the hazard warning switch.

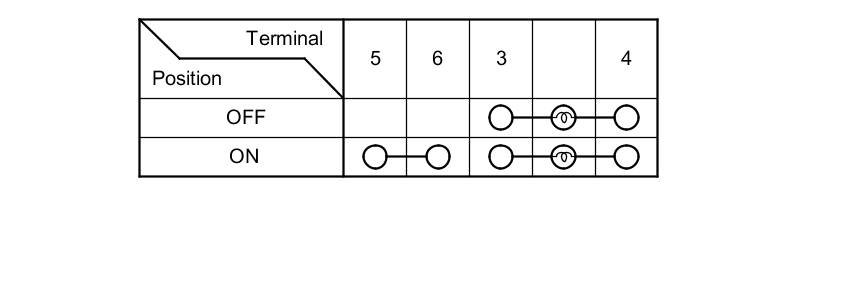

4. Check for continuity between the terminals in each switch position according to the table.






5. If the continuity is not as specified, replace the bulb(s) (C) or the hazard warning switch.

NOTE: Both illumination bulbs are connected in parallel. If there is continuity, remove one illumination bulb at a time and recheck.
