Steering Control Module: Service and Repair




ECPS Control Unit Removal/Installation

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation, and the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal / Installation.

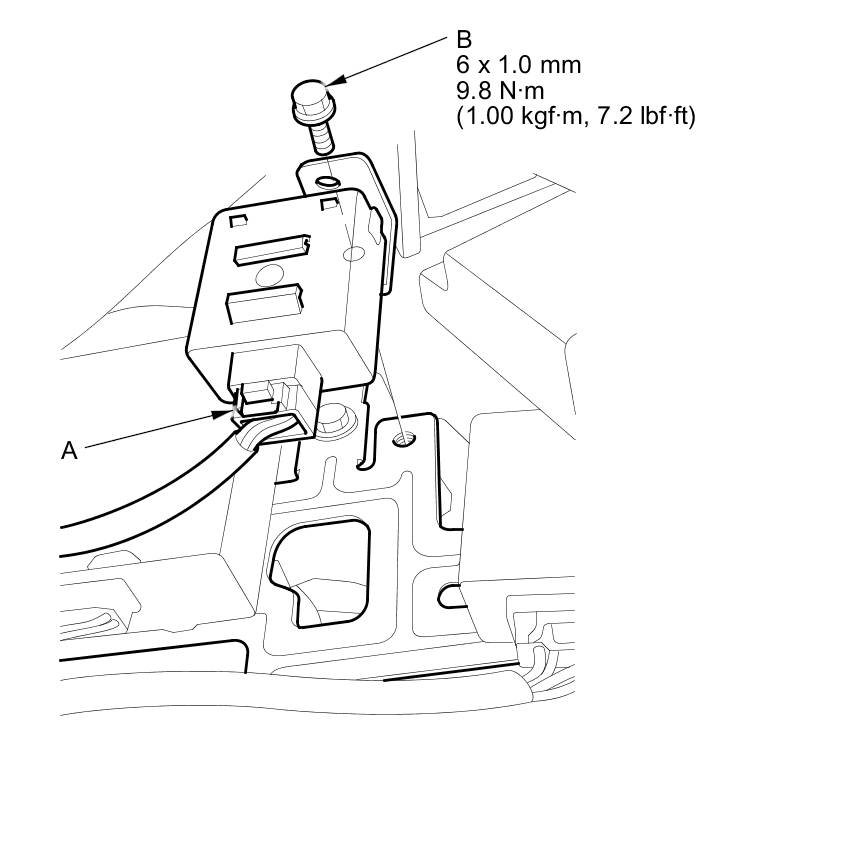

2. Disconnect the connector (A) from the ECPS control unit, and remove the bolt (B).





3. Install the ECPS control unit in the reverse order of removal.
