Wiper Switch: Service and Repair

Wiper/Washer Switch Replacement

NOTE: The wiper/washer switch is built into the combination switch control unit. For the wiper/washer test, refer to the combination switch control unit input test Wiper/Washer Switch (Combination Switch Control Unit) Input Test.

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal / Installation and the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal / Installation, then remove the steering column covers Steering Column Removal/Installation.

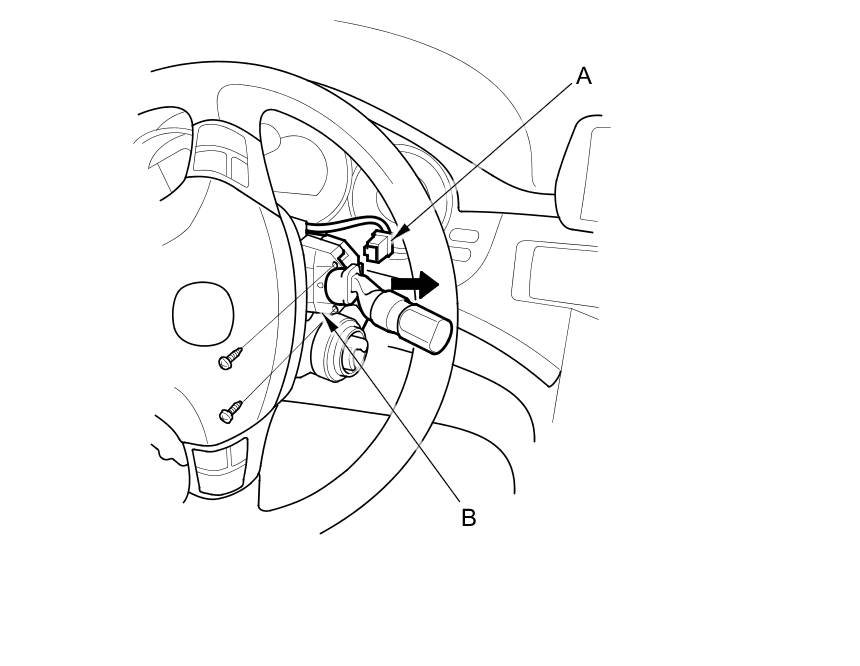

2. Disconnect the combination light switch 12P connector, and dashboard wire harness 8P connector (A) from the wiper/washer switch (B).





3. Remove the two screws, then slide out the wiper/washer switch.

4. Install the parts in the reverse order of removal.
