Washer Fluid Level Switch Test

Pull back the front section of the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

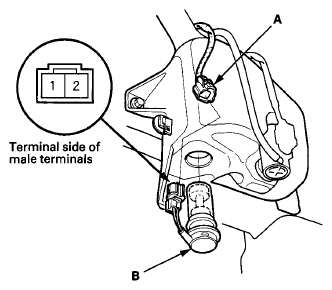

Fig 1: Disconnecting 2P Connector From Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between terminals No. 1 and No. 2 in each float position.
- There should be continuity when the float is down.
- There should be no continuity when the float is up.
If the continuity is not as specified, replace the switch.
