Side View

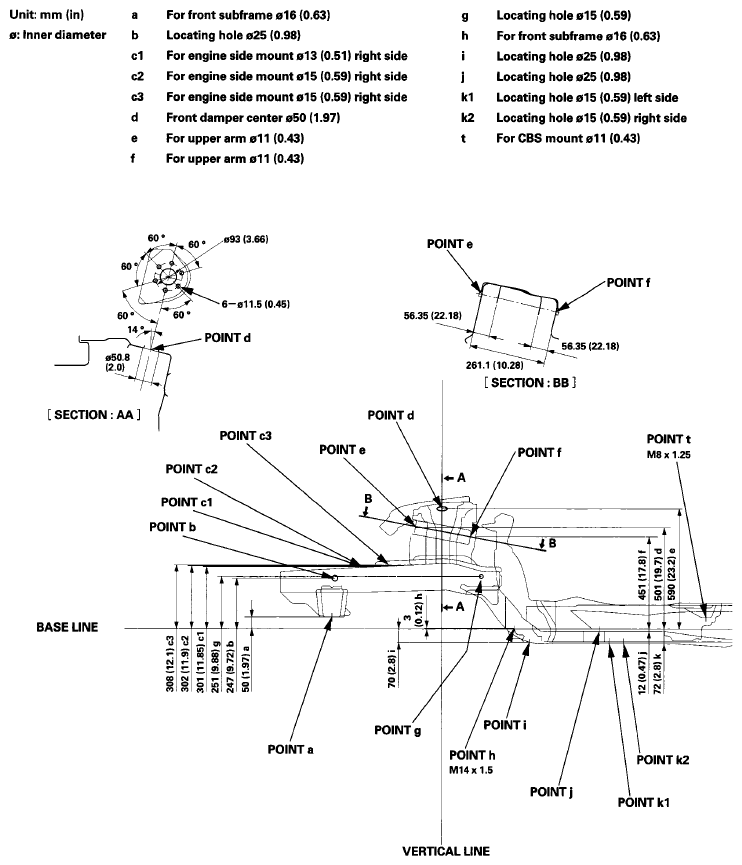

Fig 1: Frame Side View (1 Of 2)
G07354640Courtesy of AMERICAN HONDA MOTOR CO., INC.

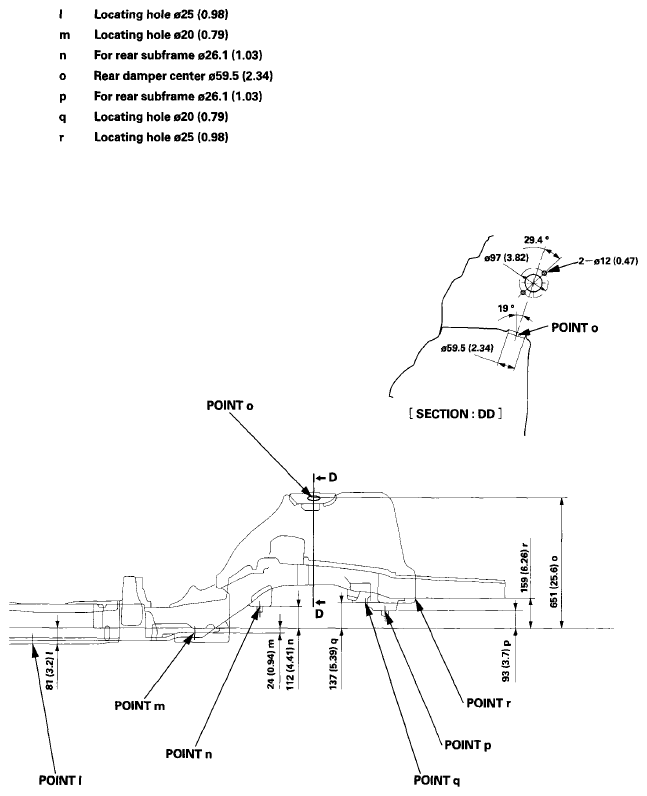

Fig 2: Frame Side View (2 Of 2)
G07354641Courtesy of AMERICAN HONDA MOTOR CO., INC.
