APP Sensor Connector End View (View 257)
BLK
Under left side of dash
On engine compartment wire harness (dash branch)

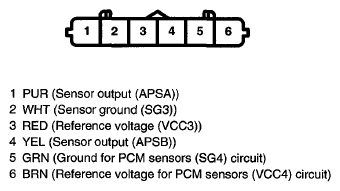

Fig 1: APP Sensor Connector Terminals (View 257)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
