Front Passenger's Lumbar Support Switch Connector End View (View 231)
NAT
Right side of front passenger's seat
On front passenger's seat wire harness

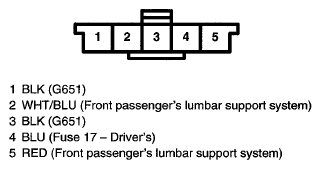

Fig 1: Front Passenger's Lumbar Support Switch Connector Terminals (View 231)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
