Input Shaft (Mainshaft) Speed Sensor Connector End View (View 168)
BLU
Below transmission housing
On engine wire harness (front branch)

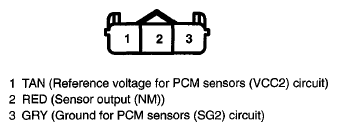

Fig 1: Input Shaft (Mainshaft) Speed Sensor Connector Terminals (View 168)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
