ANC/Active Sound Control Unit Removal/Installation

  1. Remove the stereo amplifier (see STEREO AMPLIFIER REMOVAL/INSTALLATION ).
  2. Remove the screws and the ANC/active sound control unit (A).

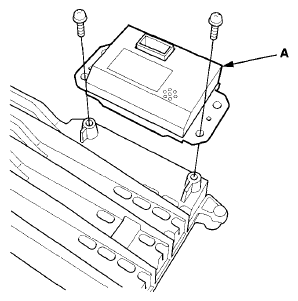

    Fig 1: Removing Screws And ANC/Active Sound Control Unit
    G07355437Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the unit in the reverse order of removal.
