Rear Camera

This tests whether rearview camera is connected to the navigation unit.
When connection is shown NG, check the rearview camera signal line.

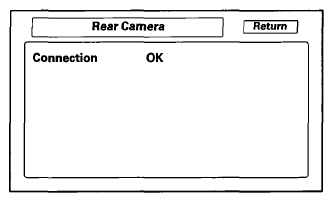

Fig 1: Identifying Rear Camera Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
