XM (Canada models)
This checks the GA-NET Bus line to the XM receiver.
When connection is shown with NG, check the connection between the XM receiver and the audio unit.

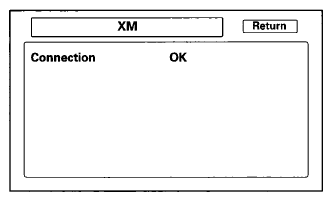

Fig 1: Identifying XM Display (Canada Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
