Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the seat-back cover (see FRONT SEAT-BACK COVER REPLACEMENT ).
Disconnect the 2P connector (A) from the lumbar support motor (B).

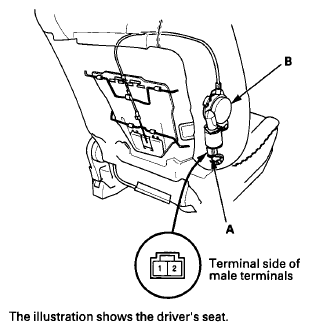

Fig 1: Disconnecting 2P Connector From Lumbar Support Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by applying battery voltage and body ground to the terminals.

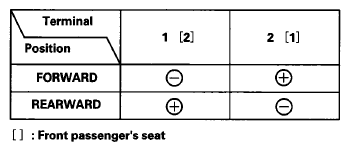

Fig 2: Terminal Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it (see FRONT SEAT LUMBAR SUPPORT REPLACEMENT ).
