Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Separate the lumbar support switch cover (A) from the switch (B) to remove the switch.

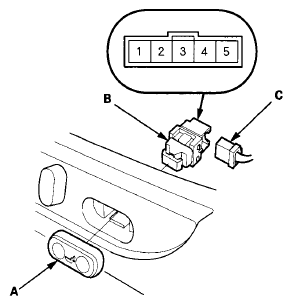

Fig 1: Separating Lumbar Support Switch Cover From Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch.
Check for continuity between terminals in each switch position according to the table.
Driver's Seat

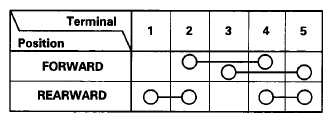

Fig 2: Driver's Seat Terminal Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front Passenger's Seat

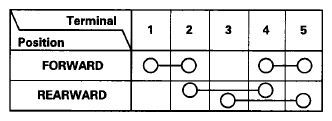

Fig 3: Front Passenger's Seat Terminal Position Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
