Headrest Switch Test

  1. Remove the roof console (see ROOF CONSOLE REPLACEMENT ).
  2. Disconnect the 28P connector (A) from the roof console (B).

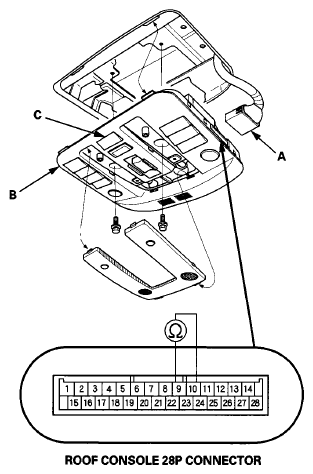

    Fig 1: Disconnecting 28P Connector From Roof Console
    G07355232Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between roof console 28P connector terminals No. 9 and No. 10.
    • There should be continuity when the headrest switch (C) is pressed.
    • There should be no continuity when the headrest switch is released.
  4. If the continuity is not as specified, replace the roof console (see ROOF CONSOLE REPLACEMENT ).
