Component Location Index & Drive Belt Routing

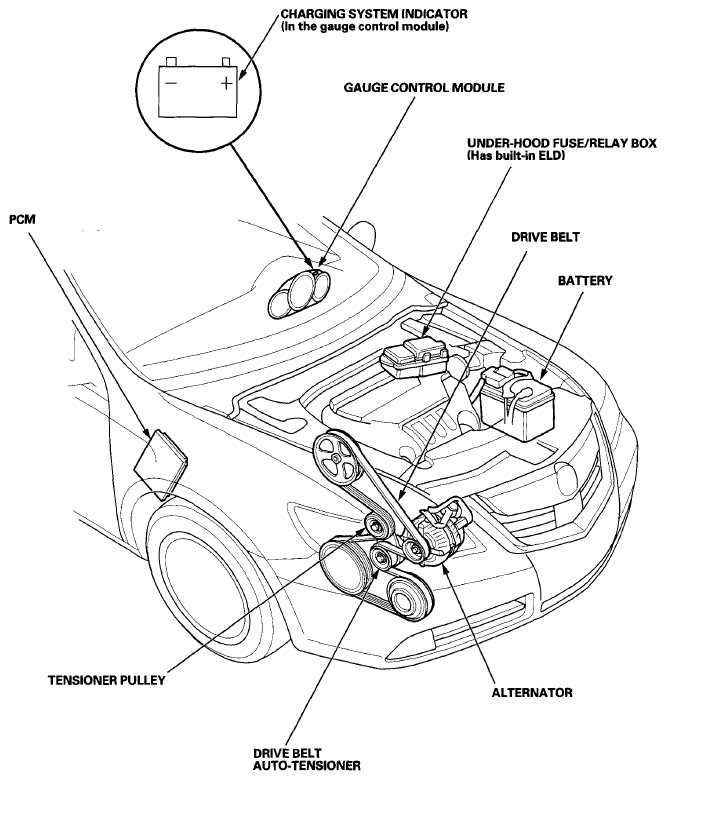

Fig 1: Identifying Charging System Components (Including Drive Belt Routing)
G07353479Courtesy of AMERICAN HONDA MOTOR CO., INC.
