EVAP Canister Filter Replacement

  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT  ).
  2. Disconnect the hose (A).

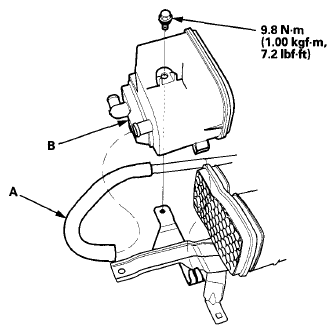

    Fig 1: Disconnecting Hose With Torque Specifications
    G07362136Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister filter (B).
  4. Install the parts in the reverse order of removal.
