Oil Jet Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the oil jet bolt (A), then remove the oil jet (B).

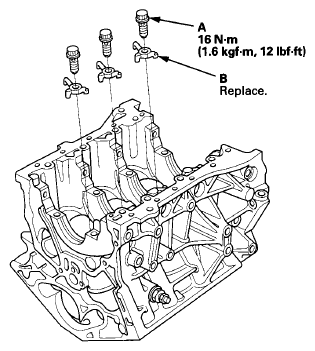

    Fig 1: Removing Oil Jet Bolt With Torque Specifications
    G07353711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the new oil jet and tighten the oil jet bolt.
    NOTE: Apply new engine oil to the oil jet bolt threads.
  4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION ).
