C962 Connector End View (View 190)
GRY
Center of rear seat back
Connects rear headrest sub-harness to rear headrest actuator sub-harness

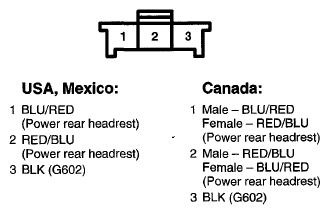

Fig 1: C962 Connector Terminals (View 190)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
