Driver's Auxiliary Under-Dash Relay Box Connector End View (View 221)
GRY
Under left side of dash
On dashboard wire harness (around the steering column)

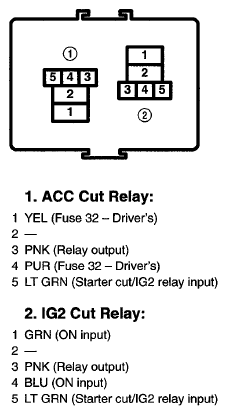

Fig 1: Driver's Auxiliary Under-dash Relay Box Connector Terminals (View 221)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
