Front A/F Sensor Connector End View (B2, S1) (View 263)
BLK
Middle of engine
On engine wire harness (front branch)

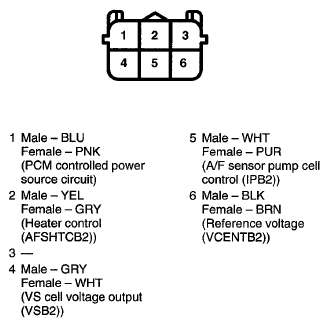

Fig 1: Front A/F Sensor (B2, S1) Connector Terminals (View 263)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
