Front Passenger's Power Window Switch Connector End View (View 305)
GRN
Front passenger's door
On front passenger's door wire harness A

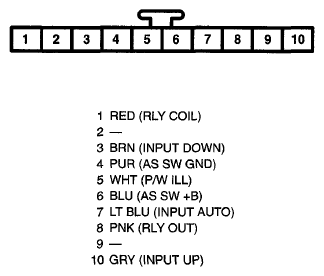

Fig 1: Front Passenger's Power Window Switch Connector Terminals (View 305)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
