PCM Connector A Connector End View (View 448)

Behind glove box
Connector A
- BLK/WHT
- On PCM sub-harness

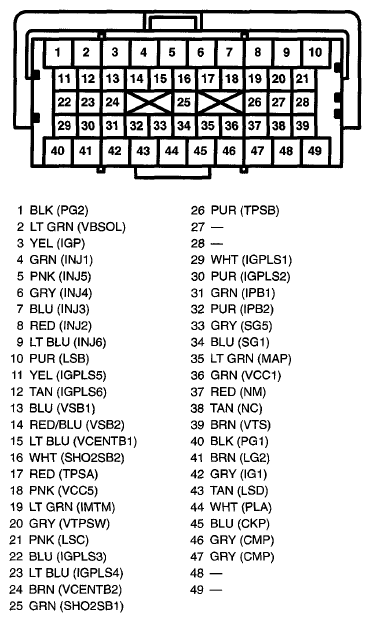

  Fig 1: PCM Connector A Terminals (View 448)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- BLK/GRY
- On PCM wire harness

  Fig 2: PCM Connector B Terminals (View 448)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- BLK/GRN
- On PCM wire harness

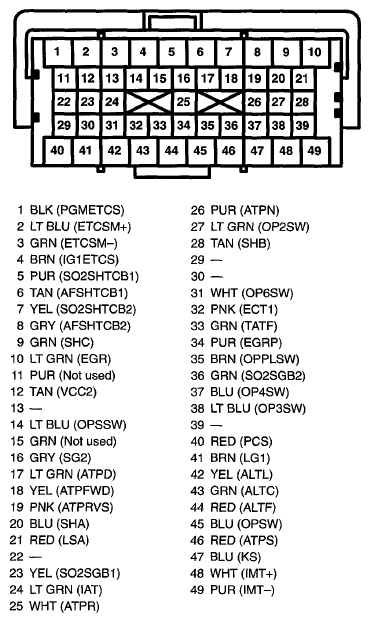

  Fig 3: PCM Connector C Terminals (View 448)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
