Paddle Shifter - Connector End View (Downshift Switch) (View 206)
WHT
Inside steering wheel
On cable reel sub-harness

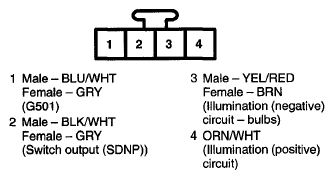

Fig 1: Paddle Shifter - (Downshift Switch) Connector Terminals (View 206)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
