SRS Unit Connector A Connector End View (View 453)

YEL/WHT
Behind middle of dash
Connector A
- On dashboard wire harness (center branch)

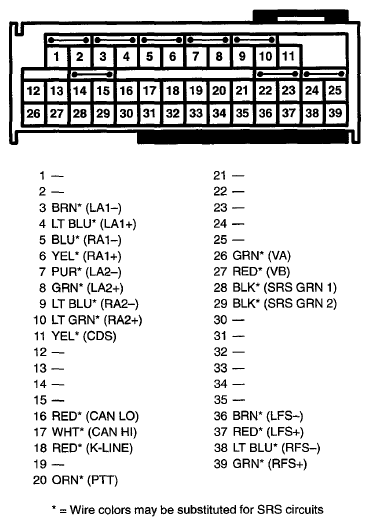

  Fig 1: SRS Unit Connector A Terminals (View 453)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
*: Wire colors may be substituted for SRS circuits

Connector B
- On right side wire harness (front branch)

  Fig 2: SRS Unit Connector B Terminals (View 453)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = Wire colors may be substituted for SRS circuits
