Fluid Leakage Inspection

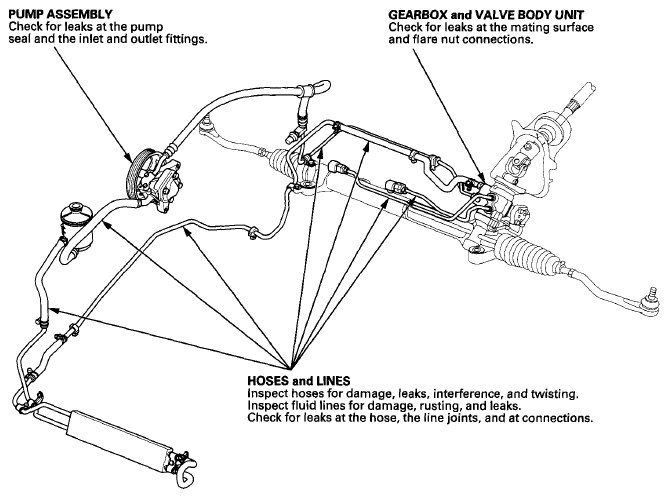

Fig 1: Identifying Fluid Leakage Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
