Steering Column Inspection: Inspection
- Remove the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION
).
- Do these checks:

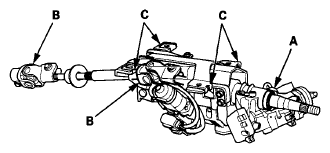

- Check the steering column ball bearing (A) and the steering joint bearings (B) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
- Check the sliding capsules (C) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
- Check the tilt mechanism and the telescopic mechanism for movement and damage.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the steering column (see INSTALLATION
).
