View 226 - Dashlights Brightness Controller Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

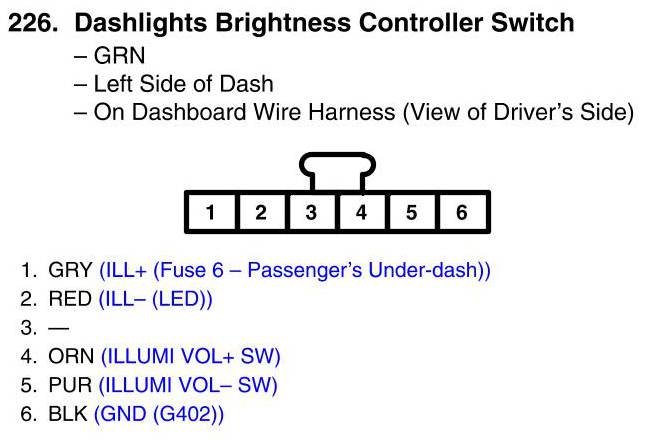

View 226 - Dashlights Brightness Controller Switch Connector View
