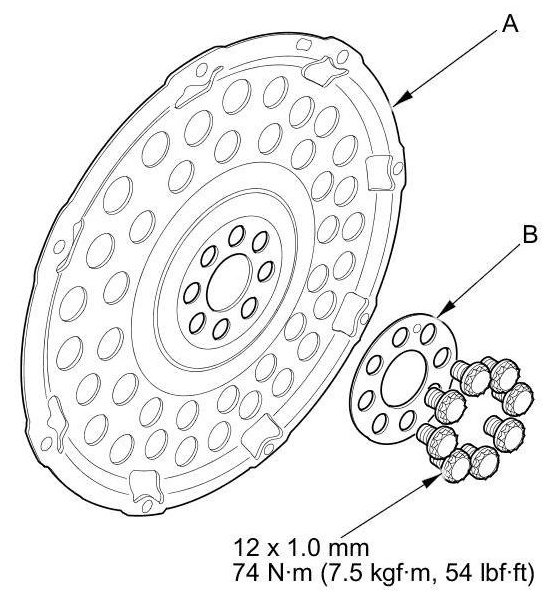

Flex Plate
Flex Plate
Bolts
74 Nm (7.5 kg-m, 54 lb-ft)
Tighten the eight bolts in a crisscross pattern in at least two steps
