Tightening Specifications

Flywheel Bolts

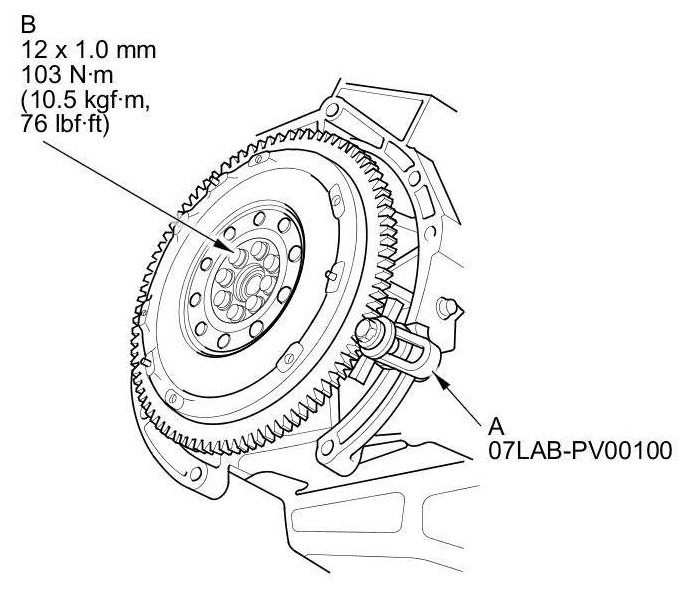

Install the ring gear holder (A), then torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.





Install the flywheel on the crankshaft, and install the mounting bolts Finger-tight.
Install the ring gear holder (A), then torque the flywheel bolts (B) 103 Nm (10.5 kg-m, 76 lb-ft)
Tighten bolts in a crisscross pattern in several steps
