Power Window Master Switch Replacement

Power Window Master Switch Replacement

1. Remove the driver's door armrest.

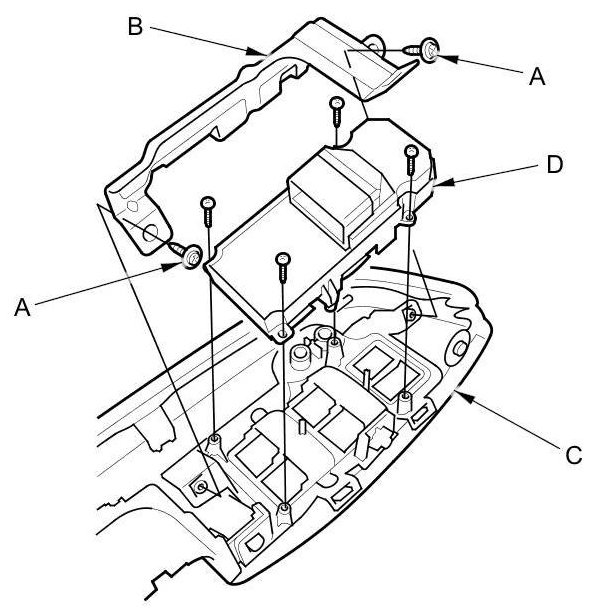

2. Remove the two screws (A), then remove the bracket (B) from the armrest assembly (C).





3. Remove the four screws and the power window master switch (D).

4. Install the switch in the reverse order of removal.

5. Resetting the power window control unit Testing and Inspection.
