Audio-Navigation Switch Panel 24P Connector

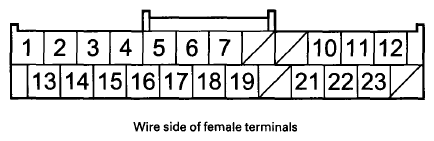

Fig 1: Audio-Navigation Switch Panel 24P Connector End View
G08067849Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO-NAVIGATION SWITCH PANEL 24P CONNECTOR

Cavity Wire Color Terminal Name Connects to
1 BLU VOL- Audio-navigation unit
2 GRY(1) VOL SH Shield for terminals No. 1, No. 13, and No. 14
3 BLU DUET CONT Audio-navigation unit
4 GRY(1) DUET SH Shield for terminals No. 15 and No. 16
5 GRY(1) OPERA SH Shield for terminals No. 6 and No. 18
6 LT BLU OPERA TX Audio-navigation unit
7 RED DISP CLK Climate control unit
10 BLK GND Body ground to G501
11 RED ILL- (LED) Gauge control module
12 LT BLU ILL-(LCD) Gauge control module
13 PNK VOL+ Audio-navigation unit
14 GRN PWR SW Audio-navigation unit
15 YEL DUET RX Audio-navigation unit
16 BRN DUET TX Audio-navigation unit
17 PNK OPERA CONT Audio-navigation unit
18 PUR OPERA RX Audio-navigation unit
19 PUR DISP SO Climate control unit
21 LT GRN IG2 No. 16 (7.5 A) fuse in the driver's under-dash fuse/relay box
22 WHT + B No. 15 (10 A) fuse in the under-hood fuse/relay box
23 GRY ILL+ No. 6 (7.5 A) fuse in the passenger's under-dash fuse/relay box
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
