How to Display DTCs on the MID of the Gauge Control Module

Enter the B-CAN System Diagnosis Test Mode 1 (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE 1 AND TEST MODE 2 (WITHOUT THE HDS)  ). While in Test Mode 1, with normal communication between the MICU and gauge control module, the DTCs which have been detected and stored individually by various B-CAN (Body-Controller Area Network) units are shown one by one on the multi-information display. To scroll through the DTCs, press the SEL/RESET button.

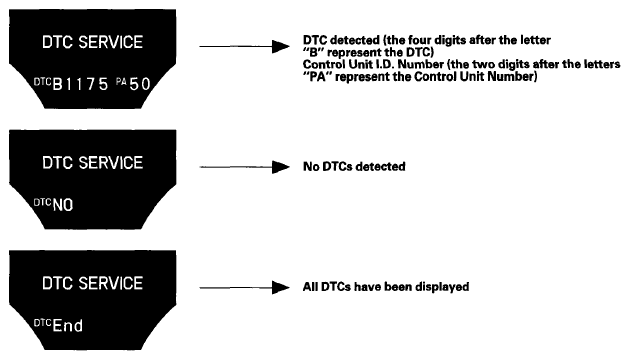

Fig 1: Display DTCs On MID Of Gauge Control Module

Courtesy of AMERICAN HONDA MOTOR CO., INC.

The control unit that has stored the code can be identified by the number shown after the letters "PA" on the multi-information display (MID).
