With Navigation

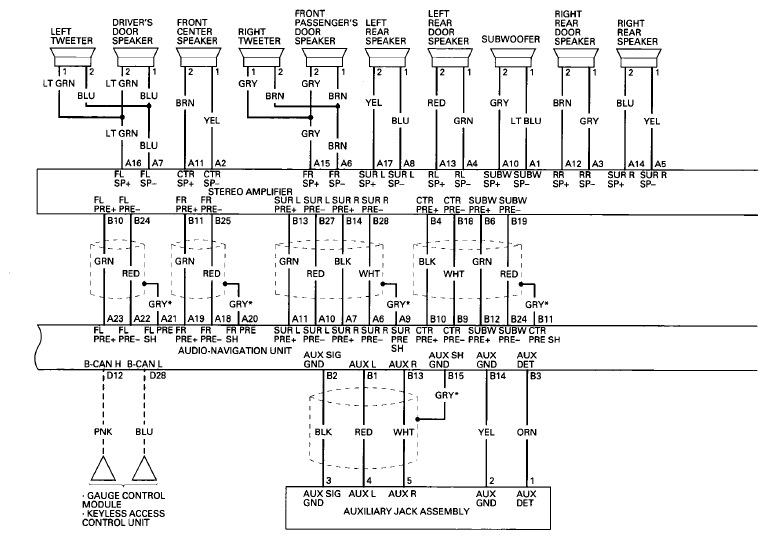

Fig 1: Audio System Circuit Diagram With Navigation (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

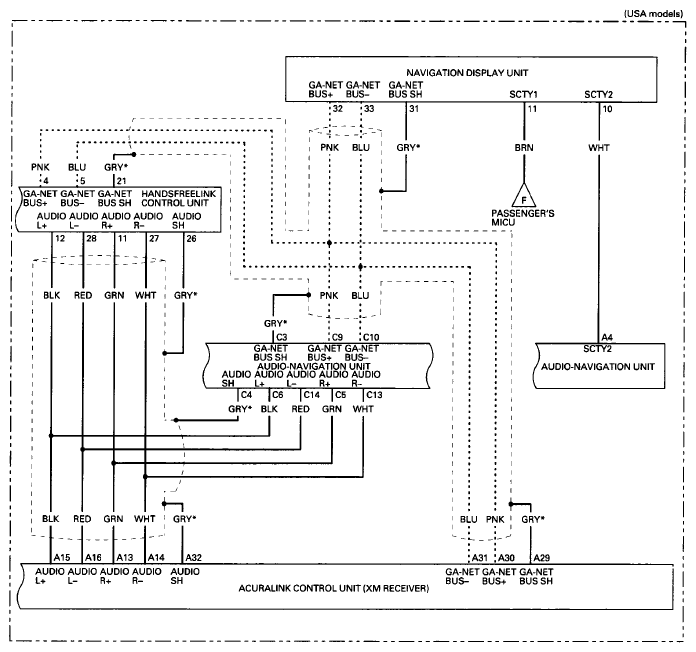

Fig 2: Audio System Circuit Diagram With Navigation (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

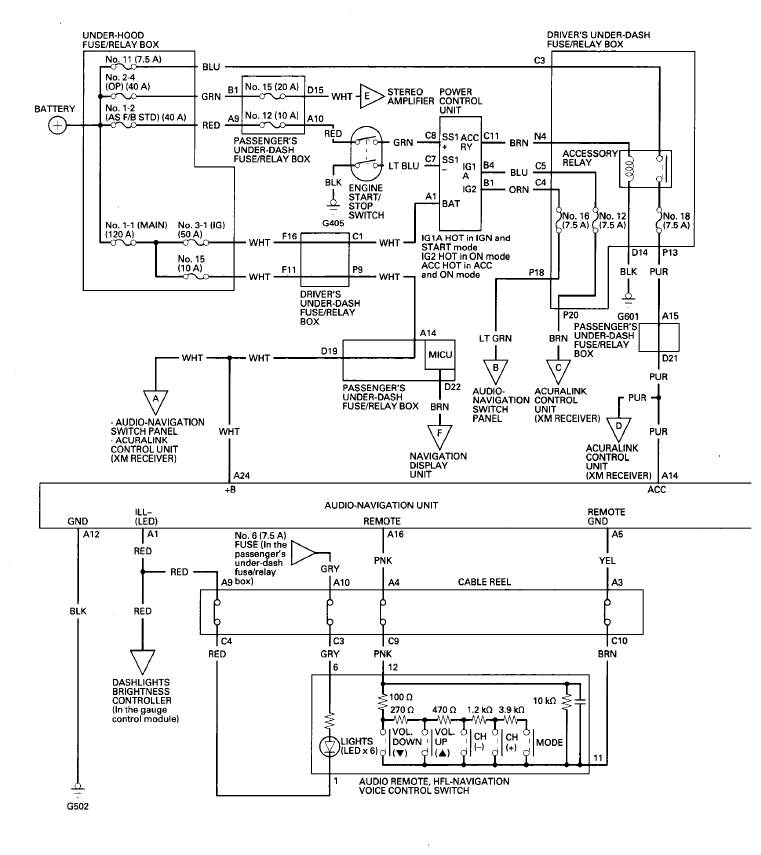

Fig 1: Audio System Circuit Diagram With Navigation (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

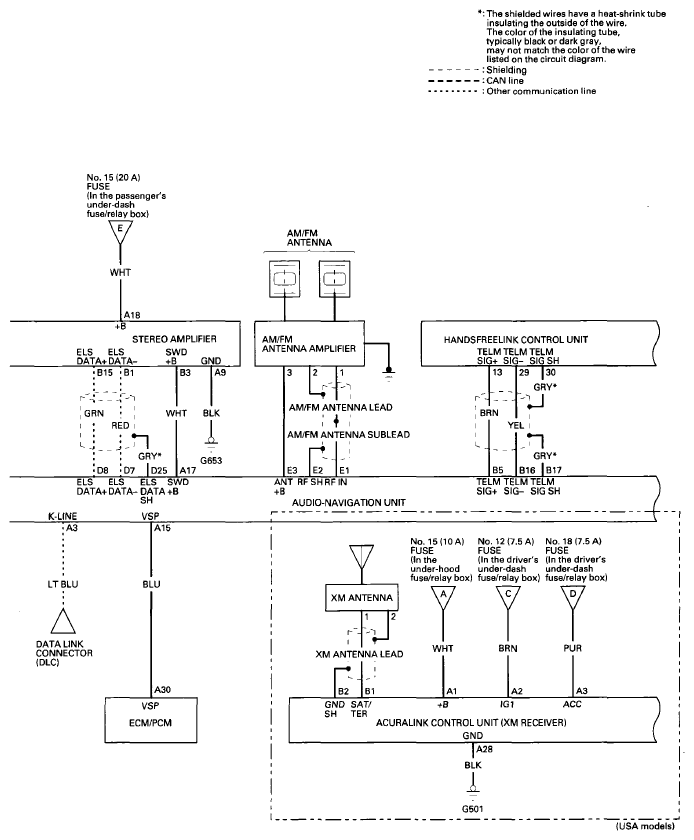

Fig 2: Audio System Circuit Diagram With Navigation (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

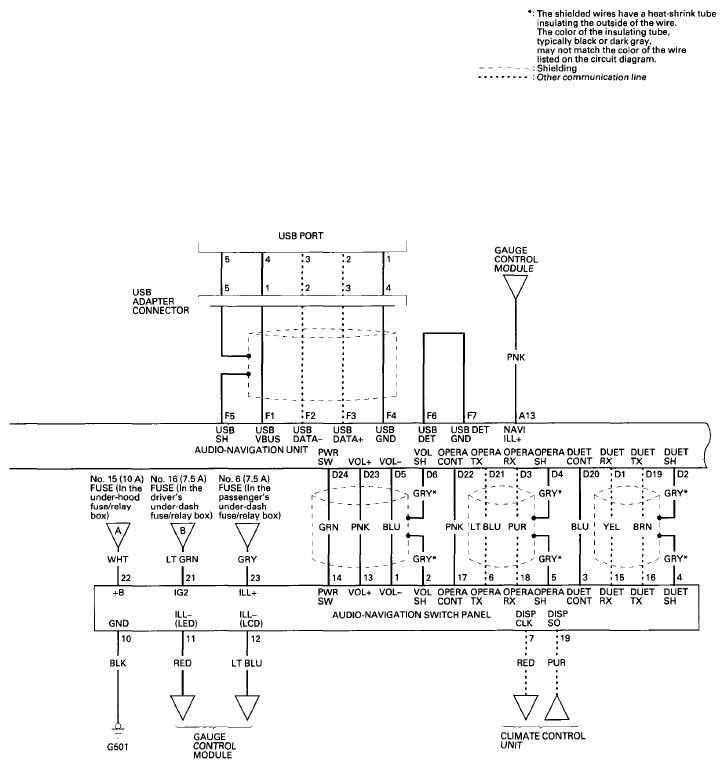

Fig 1: Audio System Circuit Diagram With Navigation (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

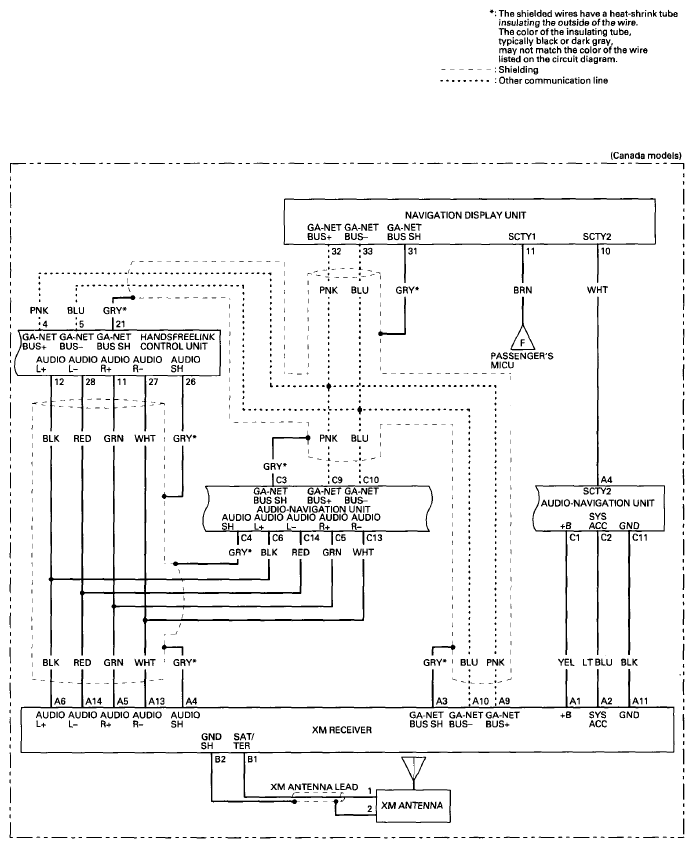

Fig 2: Audio System Circuit Diagram With Navigation (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
