Audio-Navigation Unit Connector C (14P)

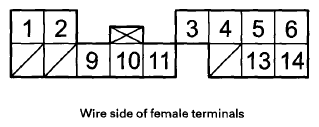

Fig 1: Audio-Navigation Unit Connector C (14P) Connector End View
G08067838Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUDIO-NAVIGATION UNIT CONNECTOR C (14P)

Cavity Wire Color Terminal Name Connects to
C1(3) YEL + B XM receiver
C2(3) LT BLU SYS ACC XM receiver
C3 GRY(1) GA-NET BUS SH Shield for terminals No. 9 and No. 10
C4 GRY(1) AUDIO SH Shield for terminals No. 5, No. 6, No. 13, and No. 14
C5 GRN AUDIO R+ AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
C6 BLK AUDIO L+ AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
C9 PNK GA-NET BUS+ AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit. Navigation display unit
C10 BLU GA-NET BUS- AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit, Navigation display unit
C11(3) BLK GND XM receiver
C13 WHT AUDIO R- AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
C14 RED AUDIO L- AcuraLink® control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
(2) USA models
(3) Canada models
