Navigation Display Visor Removal/Installation

NOTE:
  • Do this procedure in a clean place free from dirt.
  • Wear latex or vinyl gloves when doing this procedure (Do not use fabric gloves).
  • When removing the navigation display visor, do not touch the LCD face.
  • If there is dirt on the LCD face, clean it using compressed air.
  • When installing the navigation display visor onto the LCD assembly, be careful not to touch the LCD face.
  • Check that the navigation display visor and the LCD assembly are properly installed.
  • Since the LCD assembly and the navigation display visor are installed at an angle, be sure that the screws are properly seated. If not properly seated, tighten the screws.
  • Check that the navigation display unit assembly has no damage.
  1. Remove the navigation display unit .
  2. Remove the screws (A) from the LCD assembly (B).

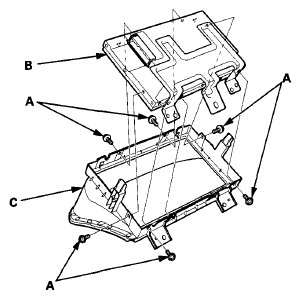

    Fig 1: Identifying LCD Assembly, Display Visor And Screws
    G08071860Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the display visor (C) from the LCD assembly.
  4. Install the navigation display visor in the reverse order of removal.
