Gray Tone

This screen checks problems with contrast. You should be able to see the changes from bar to bar across the scale. It is normal for the two bars on either side to appear the same. If you can't see changes from bar to bar, replace the navigation display  unit.

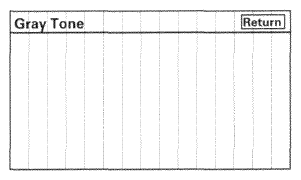

Fig 1: Display - Gray Tone Screen
G08071742Courtesy of AMERICAN HONDA MOTOR CO., INC.
