XM (HIP) System Link

This diagnosis tests the connections between the AcuraLink control unit (XM receiver) and the communication lines. Refer to the AcuraLink Self-Diagnostic Function (see DTC TROUBLESHOOTING ).

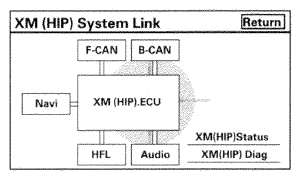

Fig 1: Display - XM (HIP) System Link Screen

Courtesy of AMERICAN HONDA MOTOR CO., INC.
