Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations. (See COMPONENT LOCATION INDEX ), and precautions and procedures. (See PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Turn over the driver's seat-back cover/pad as needed.
Remove the lumbar support motor cover (A).

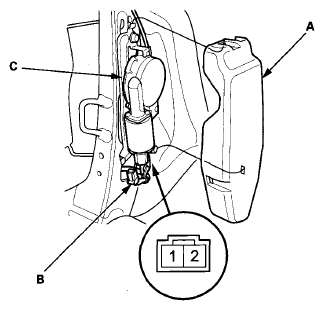

Fig 1: Identifying Lumbar Support Motor Cover & Lumbar Support Motor With Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the lumbar support motor (C).
Test the motor by applying battery power and body ground to the terminals.

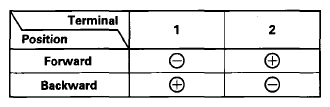

Fig 2: Testing Motor By Applying Battery Power And Body Ground To Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it. (See FRONT SEAT LUMBAR SUPPORT REPLACEMENT ).
