Front Passenger's Seat

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Remove the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Remove the power seat adjustment switch knobs (A) and the recline cover from the front passenger's seat (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION ), then remove the two screws and the power seat adjustment switch (B).

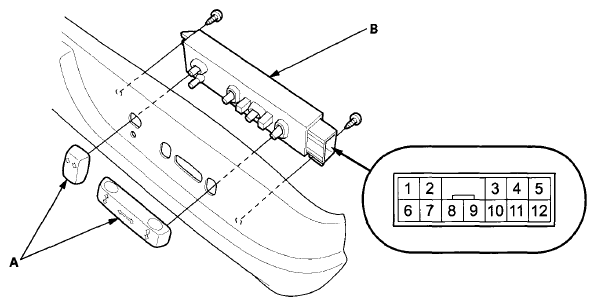

    Fig 1: Identifying Power Seat Adjustment Switch Knobs And Power Seat Adjustment Switch With Connector End View
    G08071633Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 12P connector from the power seat adjustment switch.
  4. Reinstall the adjustment switch knobs to the switch.
  5. Check for continuity between the terminals in each switch position according to the table.

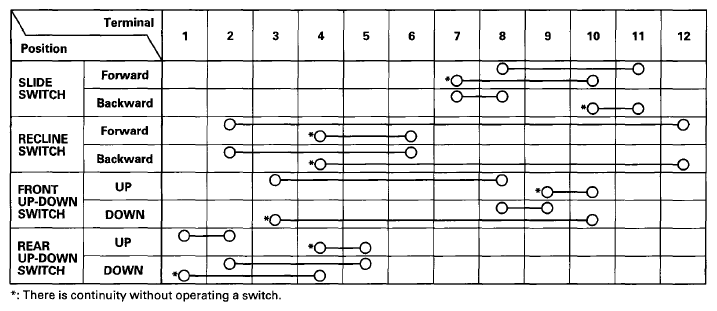

    Fig 2: Identifying Continuity Reference Chart
    G08071634Courtesy of AMERICAN HONDA MOTOR CO., INC.

    *: There is continuity without operating a switch.

  6. If the continuity is not as specified, replace the switch.
