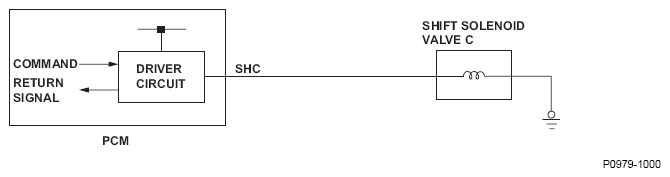

DTC P0980: Open in Shift Solenoid Valve C Circuit: Notes
HYDRAULIC PRESSURE SUPPLY TO CLUTCH BY SHIFT SOLENOID VALVE OUTPUT
| Neutral-1st | 1st | Neutral-Reverse | Reverse | |
|---|---|---|---|---|
| Shift solenoid valve A | ON | ON | ON | OFF |
| Shift solenoid valve B | OFF | ON | OFF | OFF |
| Shift solenoid valve C | OFF | OFF | ON | ON |
| 1st clutch | CPCD | LINE | - | - |
| 4th clutch | - | - | CPCD | LINE |
| Lock-up ON | |
|---|---|
| Shift solenoid valve A | ON/OFF |
| Shift solenoid valve B | ON/OFF |
| Shift solenoid valve C | ON |
| Torque converter clutch | CPCD |
| LINE: Line pressure CPCD: A/T clutch pressure control solenoid valve D pressure |
|
