Exploded View

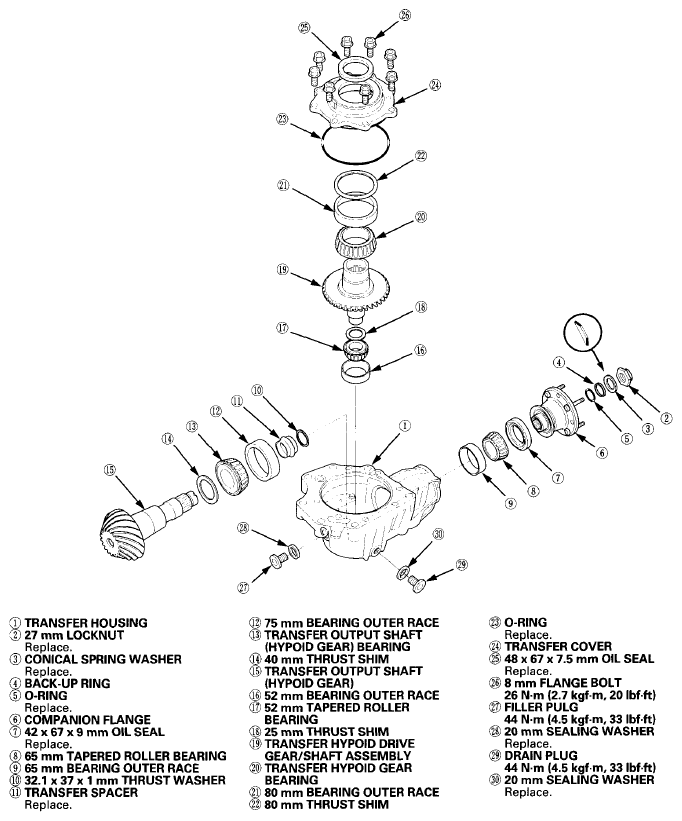

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Flange Holder 07XAB-0010101

1. Remove the transfer cover (A) from the transfer housing (B).

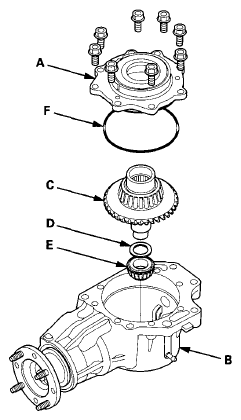

   Fig 2: Identifying Transfer Cover, Housing, Hypoid Drive Gear/Shaft Assembly, Thrust Shim, Tapered Roller Bearing And O-Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the transfer hypoid drive gear/shaft assembly (C), the 25 mm thrust shim (D), and the tapered roller bearing (E).
3. Remove the O-ring (F) from the transfer cover.
4. Remove the oil seal from the transfer cover (see TRANSFER COVER OIL SEAL REPLACEMENT  ).
5. Drain the transfer fluid (hypoid gear oil) from the transfer housing (see TRANSFER ASSEMBLY FLUID INSPECTION AND REPLACEMENT  ).
6. Cut the stake on the locknut using a chisel.
   Fig 3: Cutting Stake On Locknut Using Chisel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Secure the transfer housing in a bench vise with soft jaws.

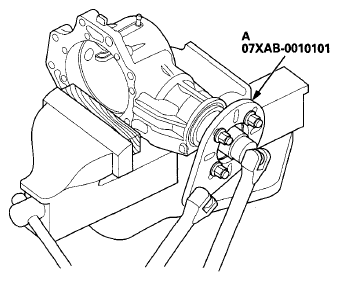

   Fig 4: Securing Transfer Housing In Bench Vise With Soft Jaws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the flange holder (A) on the companion flange, then loosen the locknut.
9. Remove the flange holder.
10. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (hypoid gear) (F).

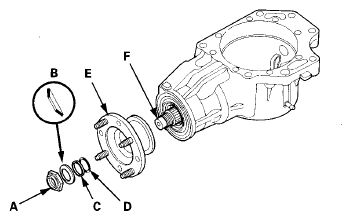

    Fig 5: Identifying Locknut, Conical Spring Washer, Back-Up Ring, O-Ring, Companion Flange And Output Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the thrust washer (C) and the transfer spacer (D) from the transfer output shaft (hypoid gear).

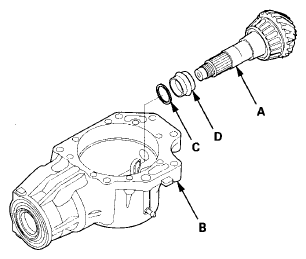

    Fig 6: Identifying Output Shaft (Hypoid Gear), Transfer Housing, Thrust Washer And Transfer Spacer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing.
    Fig 7: Identifying Oil Seal And Tapered Roller Bearing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
