Navigation Display Unit Removal/Installation

Navigation Display Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and display visor.
- When prying components, use the applicable KTC trim tool or equivalent.

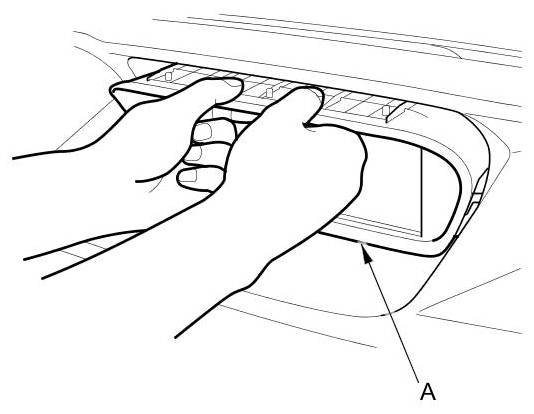

1. Carefully pull out the navigation display unit (A).

NOTE: You can remove the display visor by placing your fingers between the dashboard and display visor, then pull the display visor out.

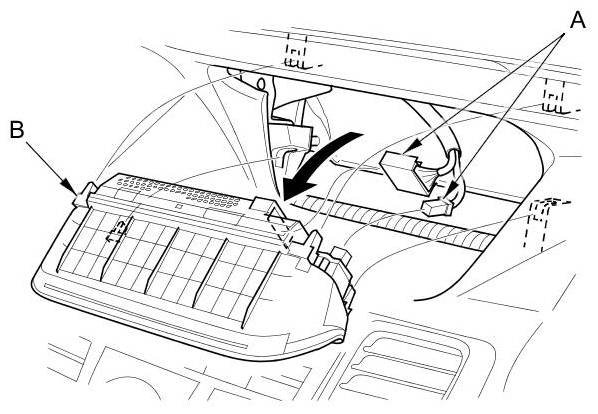

2. Disconnect the connectors (A), and remove the navigation display unit (B).





3. Install the navigation display unit in the reverse order of removal.
