View 223 - A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid Connector View (A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

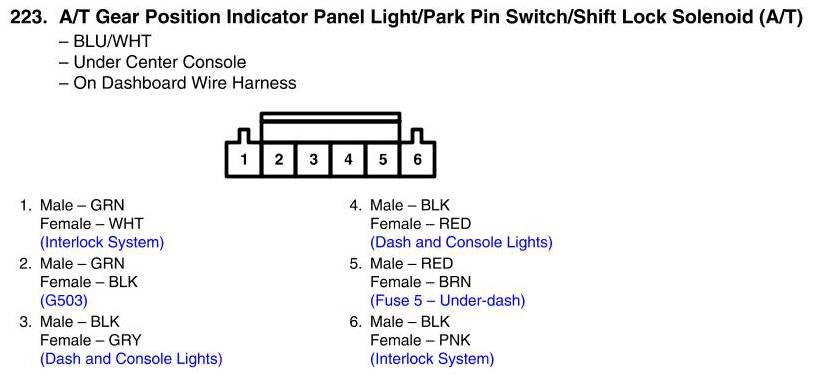

View 223 - A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid Connector View (A/T)
