View 355 - Back-up Sensor Beeper Assembly Connector View (Back-up Sensor System: Acura Accessory)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

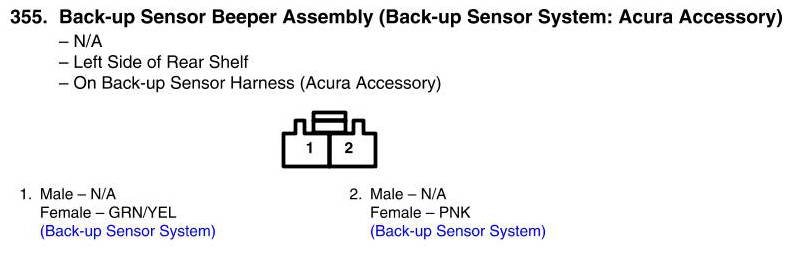

View 355 - Back-up Sensor Beeper Assembly Connector View (Back-up Sensor System: Acura Accessory)
