Tightening Specifications

Cylinder Head Bolts

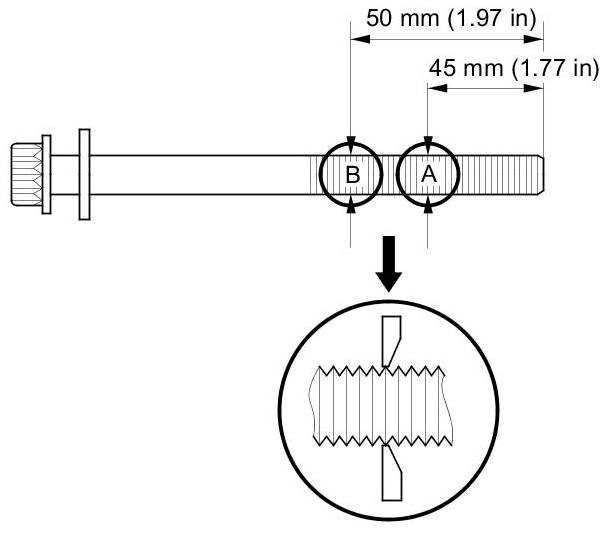

Inspection
Measure the diameter of each cylinder head bolt at point A and point B





If either diameter is less than 10.6 mm (0.417 in), replace the bolt

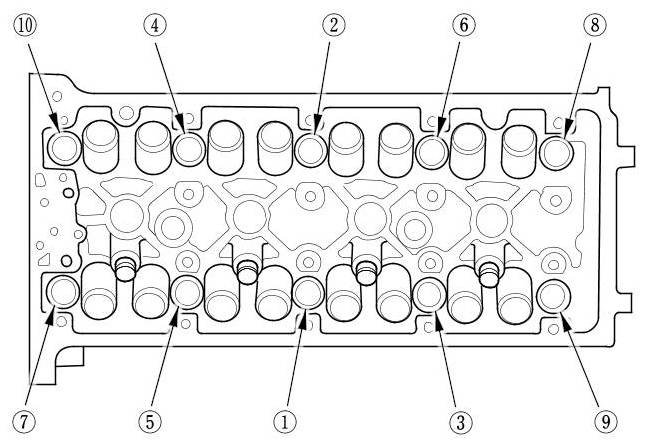

Tightening Sequence





First step 39 Nm (4.0 kg-m, 29 lb-ft)
Second step Tighten 90°
Third step Tighten 90°
Fourth step: If new bolt Tighten 90°

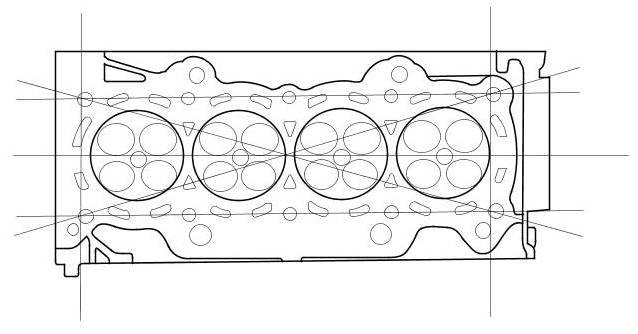

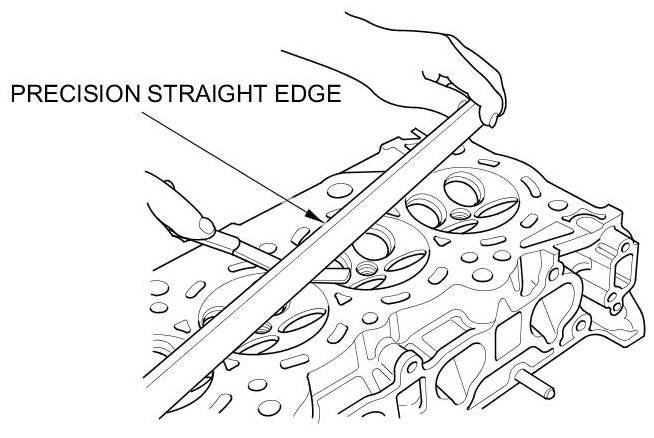

Cylinder Head Warpage Inspection
Measure along the edges, and three ways across the center
If warpage is less than 0.05 mm (0.002 in) cylinder head resurfacing is not required
Maximum resurface limited to the cylinder head height standard as shown

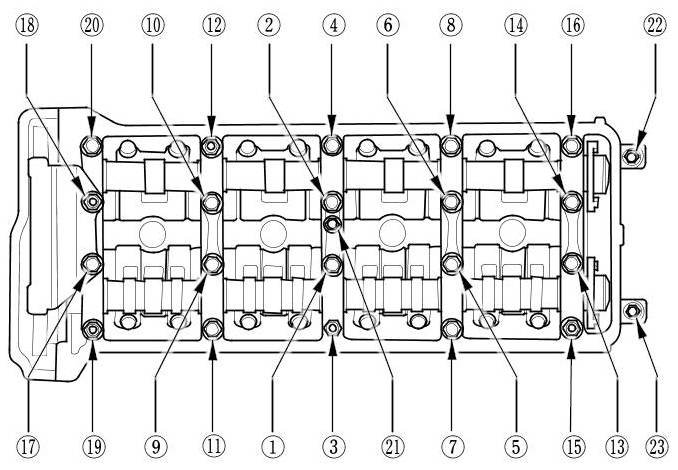

Camshaft Bearing Cap Bolts





8 X 1.25 mm 22 Nm (2.2 kg-m, 16 lb-ft)
6 X 1.0 mm 12 Nm (1.2 kg-m, 8.7 lb-ft)
6 X 1.0 mm bolts (21, 22, 23)

Intake Manifold Fasteners Specifications

Exhaust Manifold Nuts Specifications

VTC Actuator, Exhaust Camshaft Sprocket Bolts Specifications
