Auxiliary Input / Output Jack, Entertainment System
>>
USB Adapter Control Unit Connector View (without Navigation)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

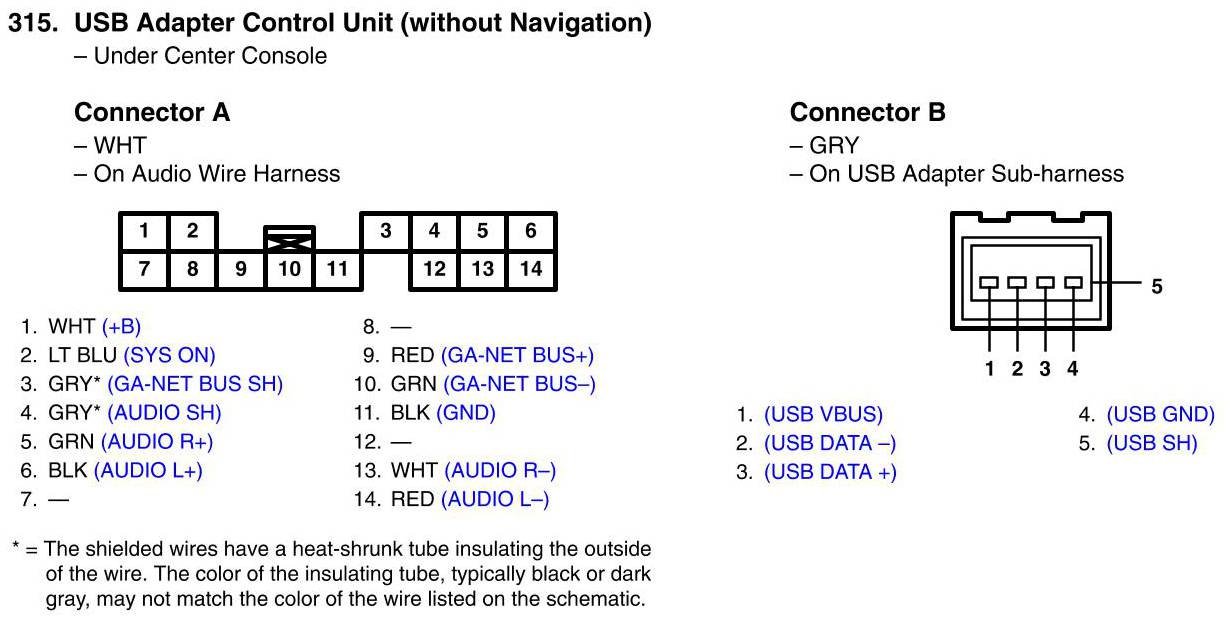

USB Adapter Control Unit Connector View (without Navigation)
