IG1/IG2 Fuse And Remote Starting Control Unit In-line Fuse Connector View (Acura Accessory)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

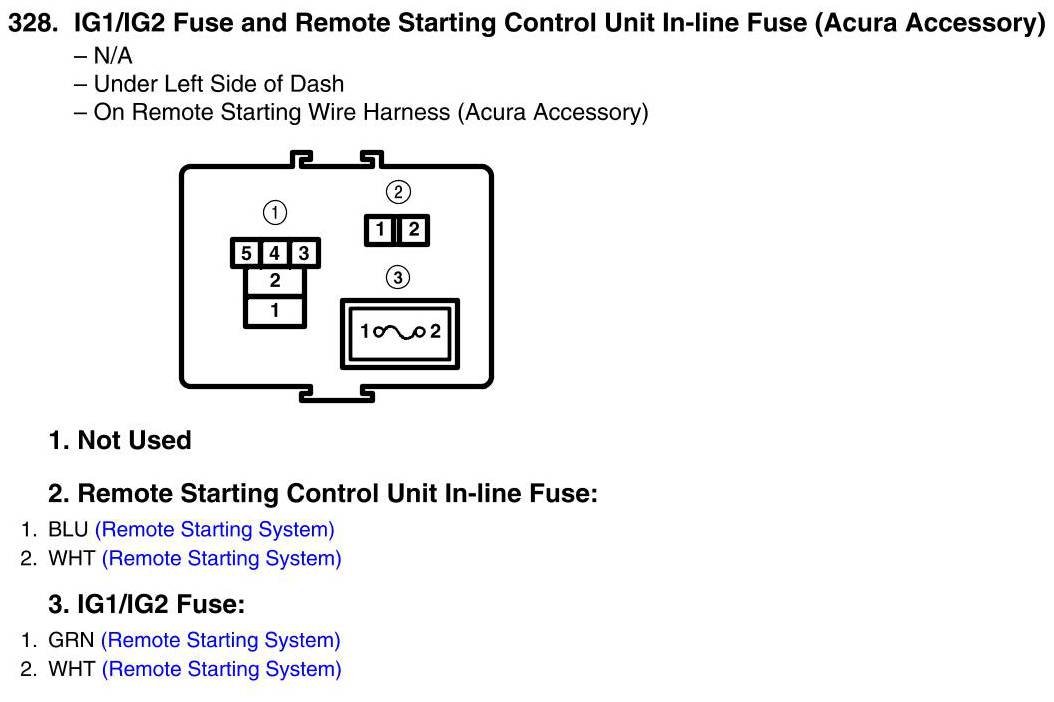

IG1/IG2 Fuse And Remote Starting Control Unit In-line Fuse Connector View (Acura Accessory)
