Keyless Access Remote Slot Light Test (With Keyless Access System)

Keyless Access Remote Slot Light Test

1. Remove the driver's inner dashboard trim Driver's Inner Dashboard Trim Removal / Installation.

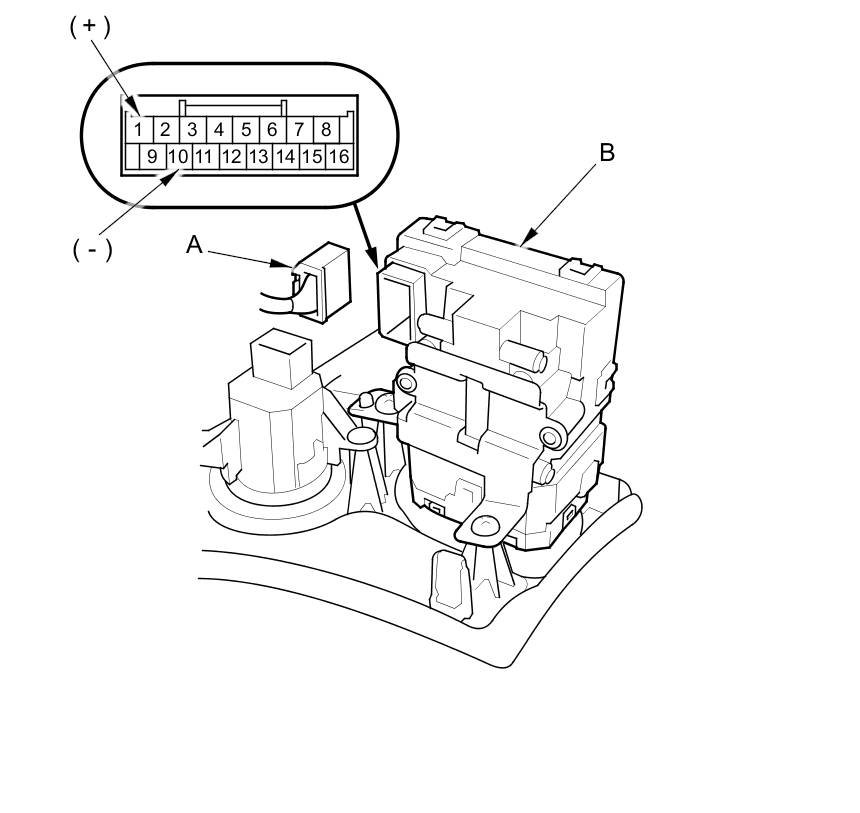

2. Disconnect the 16P connector (A) from the remote slot (B).





3. The LED should come on when power is connected to terminal No. 1 and ground is connected to terminal No. 10.

4. If the LED does not come on, the remote slot light is faulty; replace the remote slot control unit Keyless Access Remote Slot Test/Replacement.
